Boundary Dimensions
d 240 mm Bore diameter
D 440 mm Outside diameter
T 127 mm Total width
B 120 mm Width of inner ring
C 100 mm Width of outer ring
Cup r (min.) 4 mm Chamfer dimension of outer ring (Cup)
Cone r (min.) 5 mm Chamfer dimension of inner ring (Cone)
Basic Load Ratings
Cr 2000000 N Basic dynamic load rating
C0r 2730000 N Basic static load rating
Speeds
Grease 750 min-1 Grease lubrication
Oil (Oil-bath) 1000 min-1 Oil-bath lubrication
Dimensions
a 102.5 mm Effective load center
Abutment and Fillet Dimensions
da (min.) 267 mm Diameter of shaft abutment
Db (min.) 416 mm Diameter of housing abutment
Da (min.) 374 mm Diameter of housing abutment
Da (max.) 422 mm Diameter of housing abutment
Sa 12 mm Minimum width of space required in housing on large side face
Sb 27 mm Minimum width of space required in housing on small side face
db (max.) 285 mm Diameter of shaft abutment
ra (max.) 4 mm Radius of shaft or housing fillet of inner ring
ra (max.) 3 mm Radius of shaft or housing fillet of outer ring

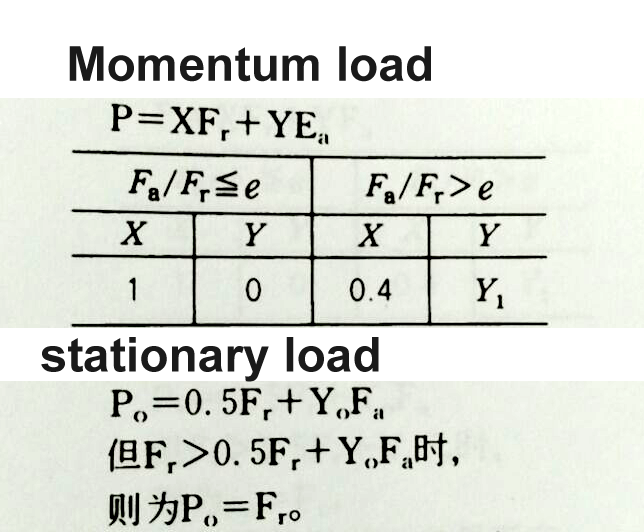

Calculation factors
e 0.4 Constant
Y0 0.82 Axial load Factors
Y1 1.5 Axial load Factors
Mass

(approx.) 78 kg
