      NSK  21305CD   21305CDK  bearing    or ZWZ

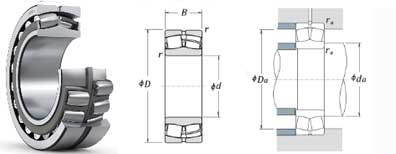

Boundary Dimensions
d 25 mm Bore diameter
D 62 mm Outside diameter
B 17 mm Width
r (min.) 1.1 mm Chamfer dimension
Basic Load Ratings
Cr 43000 N Basic dynamic load rating
C0r 40500 N Basic static load rating

Grease 5300 min-1 Grease lubrication
Oil (Oil-bath) 6700 min-1 Oil-bath lubrication
Abutment and Fillet Dimensions
da (min.) 32 mm Diameter of shaft abutment
da (max.) 34 mm Diameter of shaft abutment
Da (min.) 55 mm Diameter of housing abutment
Da (max.) 51 mm Diameter of housing abutment
ra (max.) 1 mm Radius of shaft or housing fillet
Calculation factors
e 0.29 Constant
Y2 3.4 Axial load Factors
Y3 2.3 Axial load Factors
Y0 2.3 Axial load Factors
Mass 0.26 kg
