ZWZ 7300 B WDT DB DFDT Bearings wholesale price | On sale

                                                                                    INQUIRY

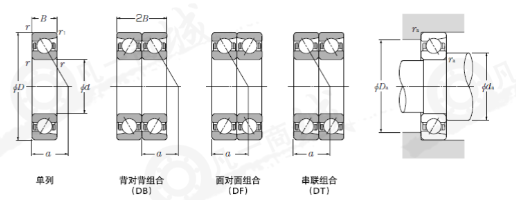

Boundary Dimensions
d 10 mm Bore diameter
D 35 mm Outside diameter
2B 22 mm Width 2B
r (min.) 0.6 mm Chamfer dimension
r1 (min.) 0.3 mm Chamfer dimension
Basic Load Ratings
Cr 15600 N Basic dynamic load rating
C0r 8100 N Basic static load rating
Speeds
Grease 11000 min-1 Grease lubrication
Oil (Oil-bath) 16000 min-1 Oil-bath lubrication
Abutment and Fillet Dimensions
da (min.) 15 mm Diameter of shaft abutment
Da (max.) 30 mm Diameter of housing abutment
ra (max.) 0.6 mm Radius of shaft or housing fillet
Mass
(approx.) 0.108 kg
